Rapid Trigger Explained — Complete Engineering Breakdown

Rapid Trigger is the defining feature that separates modern magnetic keyboards from traditional mechanical switches. It removes reset delay, improves movement responsiveness, and gives competitive FPS players a measurable advantage. In this article, we break down what Rapid Trigger is, how it works at the hardware and firmware level, and how the MK60 HE implements one of the fastest RT systems in the industry.

A Brief History of Rapid Trigger

Traditional mechanical switches rely on metal leaf contacts. When the key is pressed and released, those metal leaves physically bounce several times before settling. This bounce creates a delay requiring a debounce algorithm (typically 5–20ms) to filter false signals.

When competitive shooters demanded faster movement resets, analog and magnetic switches became the solution. Rapid Trigger technology emerged from the need for instant key reset without the mechanical hysteresis found in conventional switches.

What Is Rapid Trigger? (Technical Explanation)

Rapid Trigger eliminates the need to fully release a key before it resets. Instead of waiting for a physical contact to separate, the keyboard monitors real-time magnetic travel and resets the key as soon as it moves upward beyond a user-defined threshold.

How It Works Technically

1. Each key’s magnet moves relative to a Hall Effect sensor.
2. The sensor outputs an analog voltage curve based on magnetic flux density.
3. The MK60 HE ADC samples this signal thousands of times per second.
4. The firmware tracks both downward and upward travel.
5. When upward travel crosses a reset threshold (0.1–0.8mm), the key is instantly “ready” again.

Key takeaway: The reset point is no longer fixed by hardware — it’s controlled entirely by software.

How Rapid Trigger Works on MK60 HE

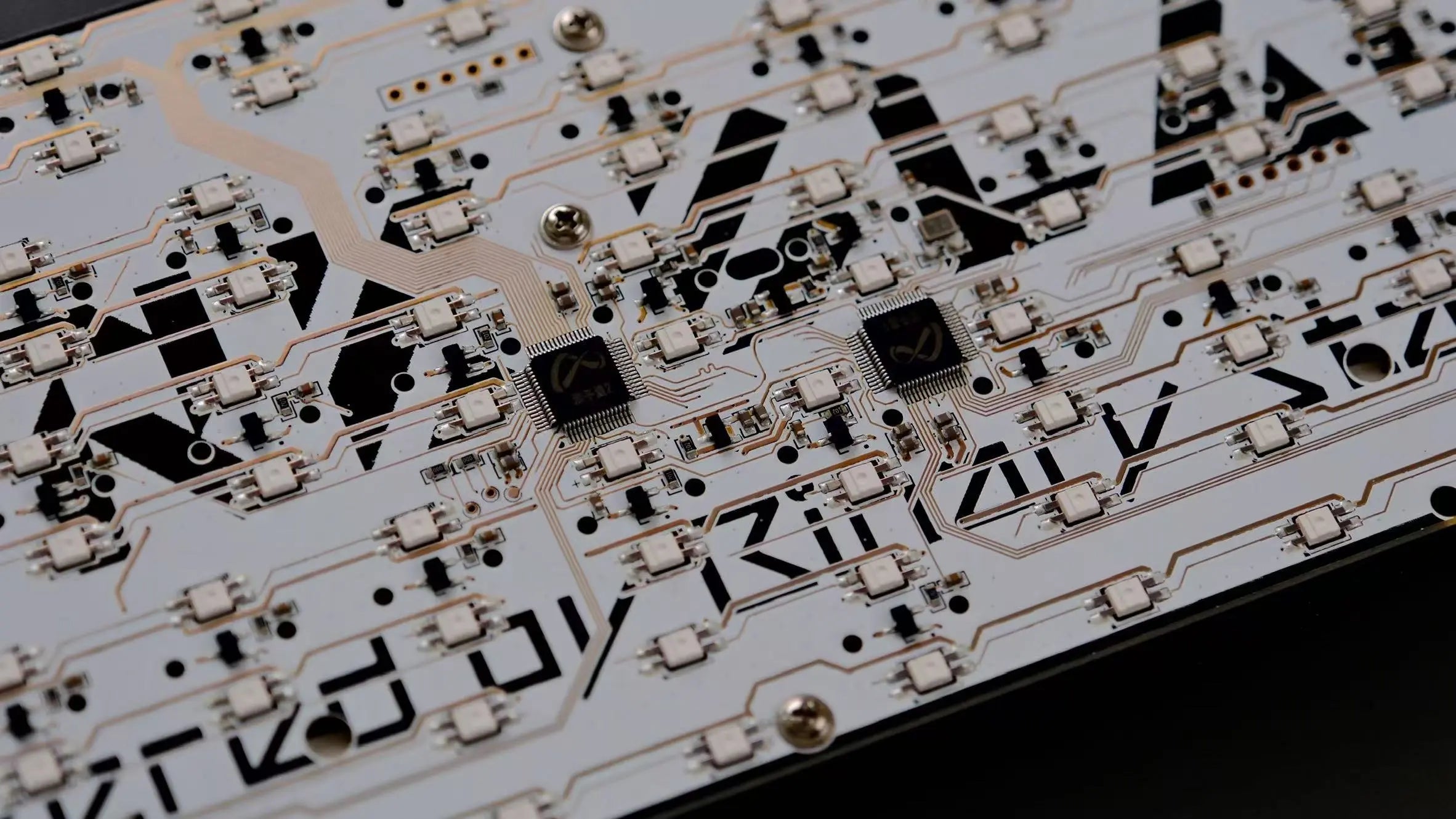

The MK60 HE features a refined Rapid Trigger system powered by its dual-MCU architecture. One MCU handles high-speed travel detection, while the other manages firmware logic and USB communication.

MK60 HE Specifications That Affect RT

Using Rapid Trigger in MorkBlade Connect

• Enable RT globally or per key.
• Adjust the reset threshold to match your movement style.
• Lower values (0.1–0.3mm) = faster reset for FPS movement.
• Higher values = more control for rhythm or editing games.

When Does Rapid Trigger Matter?

Rapid Trigger benefits games where movement precision and timing directly influence aim and survival. This includes:

• Valorant — precise counter-strafing
• CS2 — instant stopping accuracy
• Apex Legends — directional tap adjustments
• Fortnite — edit resets and strafing
• Osu & rhythm games — tap speed consistency

The MK60 HE provides per-key RT, allowing complete tuning depending on whether you want fast movement or precise tapping.

Why Rapid Trigger Beats Mechanical Switches

Mechanical switches are fundamentally limited by physical contacts and hardware hysteresis. Magnetic keyboards, especially the MK60 HE, bypass this limitation entirely with continuous analog travel detection.

• No debounce → instant input
• No hysteresis → no fixed reset point
• Adjustable reset distance → fully customizable
• Better movement precision → competitive advantage
• More consistent performance → no contact wear

Conclusion — Why MK60 HE Has One of the Best Rapid Trigger Systems

Rapid Trigger transforms your keyboard from a simple input device into a precise movement controller. The MK60 HE takes full advantage of magnetic sensing with its dual-MCU design, extremely high scan rate, and fine-tuned firmware logic.

If you want faster strafing, more consistent movement, and better control in FPS games, Rapid Trigger is not just an upgrade — it's a competitive necessity.
