What Is a Magnetic Hall Effect Keyboard? — Complete Engineering Breakdown

Hall Effect keyboards are becoming the new standard for performance gaming—especially in titles where movement precision, counter-strafe timing, and tapping speed define the difference between casual and competitive players. In this article, we break down the engineering behind Hall Effect technology, explain how the MK60 HE uses it, and compare it directly against traditional mechanical switches.

To understand why magnetic keyboards are dominating today’s gaming world, we need to look at how they work from the sensor level all the way to firmware logic.

A Brief History of Hall Effect Keyboards

Although magnetic sensing feels new, the Hall Effect principle dates back to 1879, discovered by physicist Edwin Hall. It wasn’t until the 1960s that Hall sensors were used in industrial keyboards—mainly in aviation, early computers, and military equipment—because they offered contactless durability and reliability.

Modern gaming keyboards revived Hall Effect technology because:

• Mechanical contacts wear down over time
• Switch feel and performance can change with heavy use
• FPS games require faster reset, finer movement control, and higher tap speed
• Analog input is finally useful and supported in many PC games

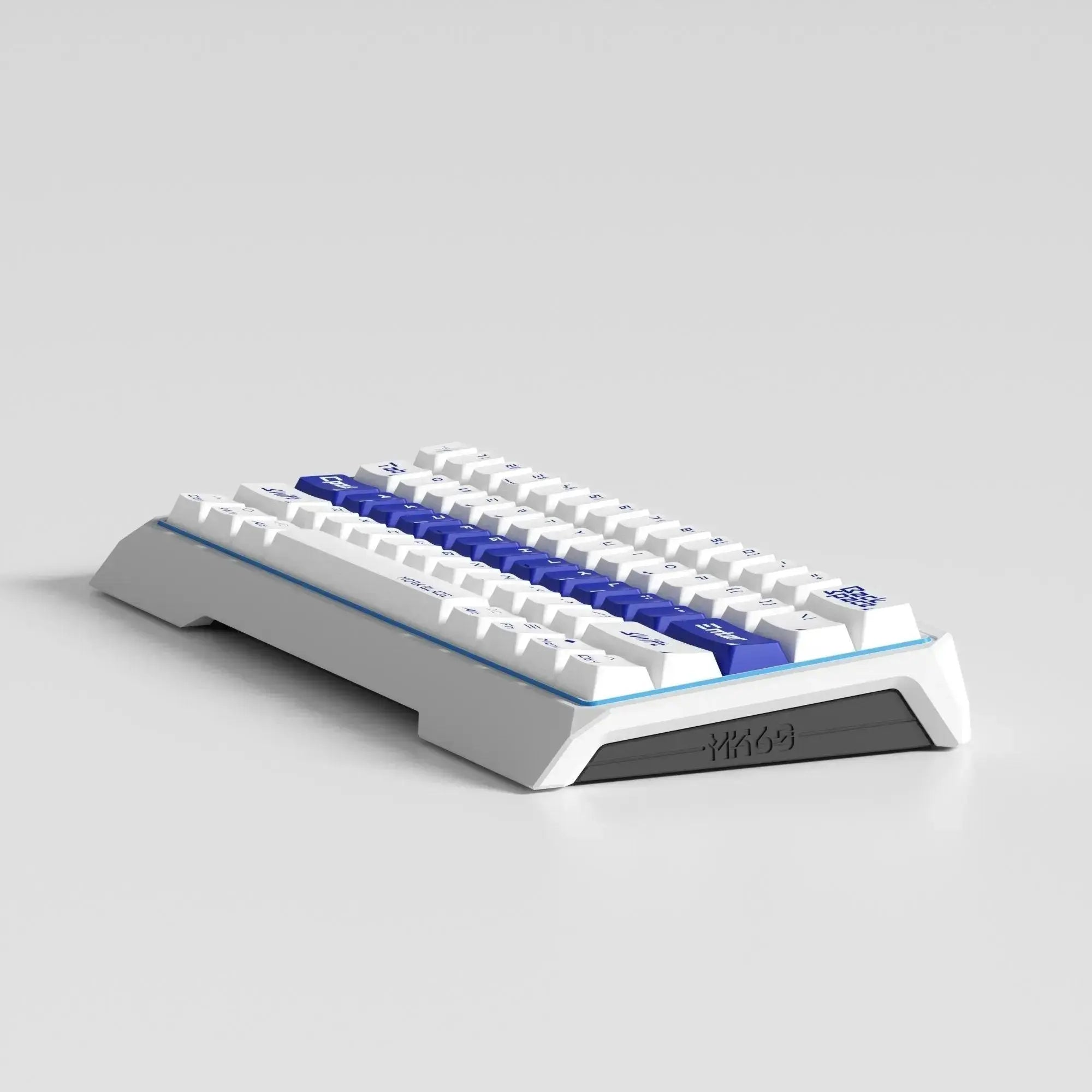

The MK60 HE builds on this historic foundation and brings next-generation magnetic sensing to a compact, competitive 60% gaming keyboard.

Technical — How Hall Effect Keyboards Actually Work

Hall Effect keyboards detect the exact physical position of a key using magnetic flux changes—not metal contacts. Each keypress becomes a continuous analog signal that the firmware can use for actuation, Rapid Trigger, analog movement, and more.

How It Works (Engineering View)

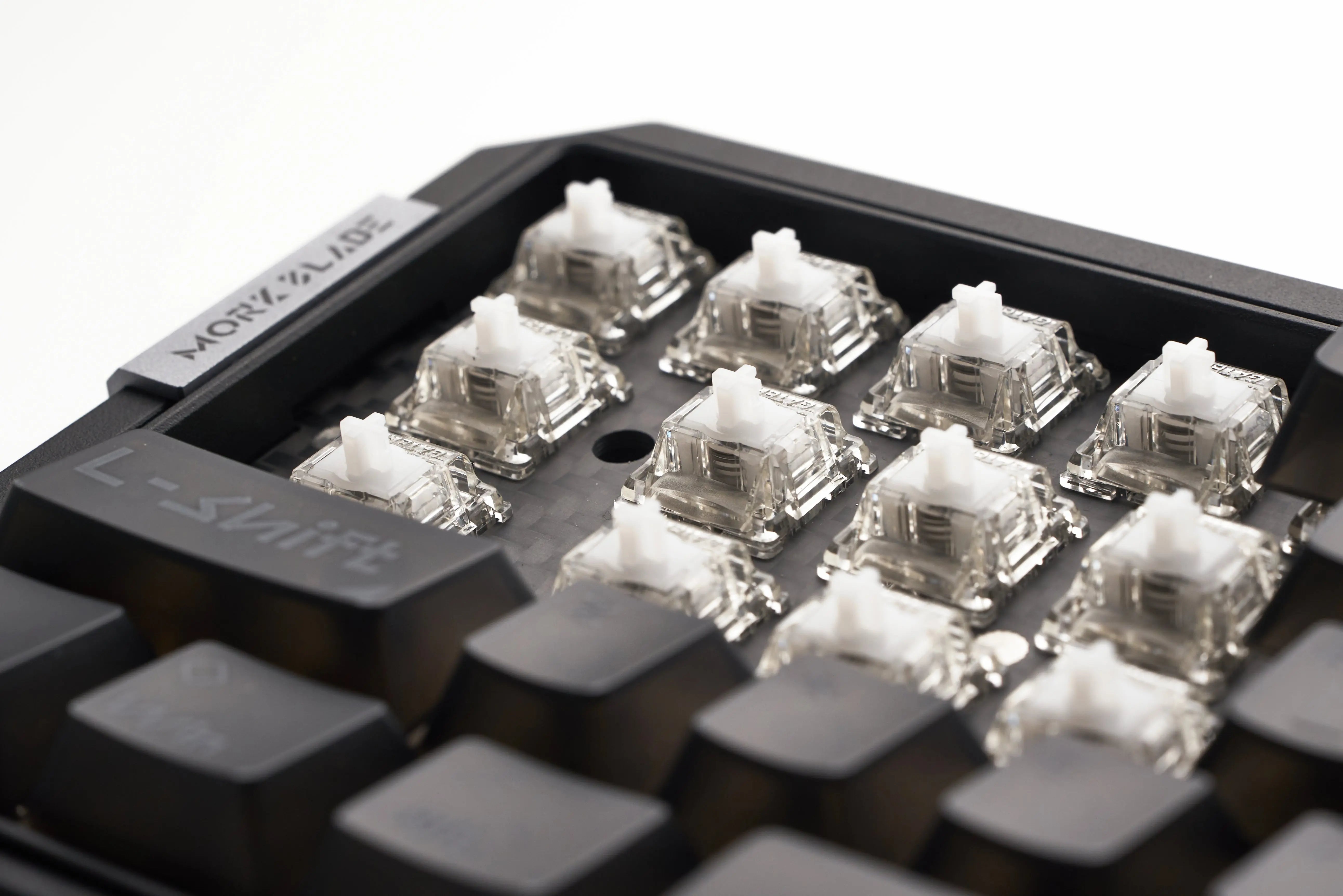

1. Each switch has a small permanent magnet embedded in the stem.
2. A linear Hall Effect sensor (IC) is mounted on the PCB under the key.
3. As the key moves, the magnet changes the magnetic flux density (mT) seen by the sensor.
4. The sensor outputs an analog voltage (for example, ~0.5V–2.0V across the travel).

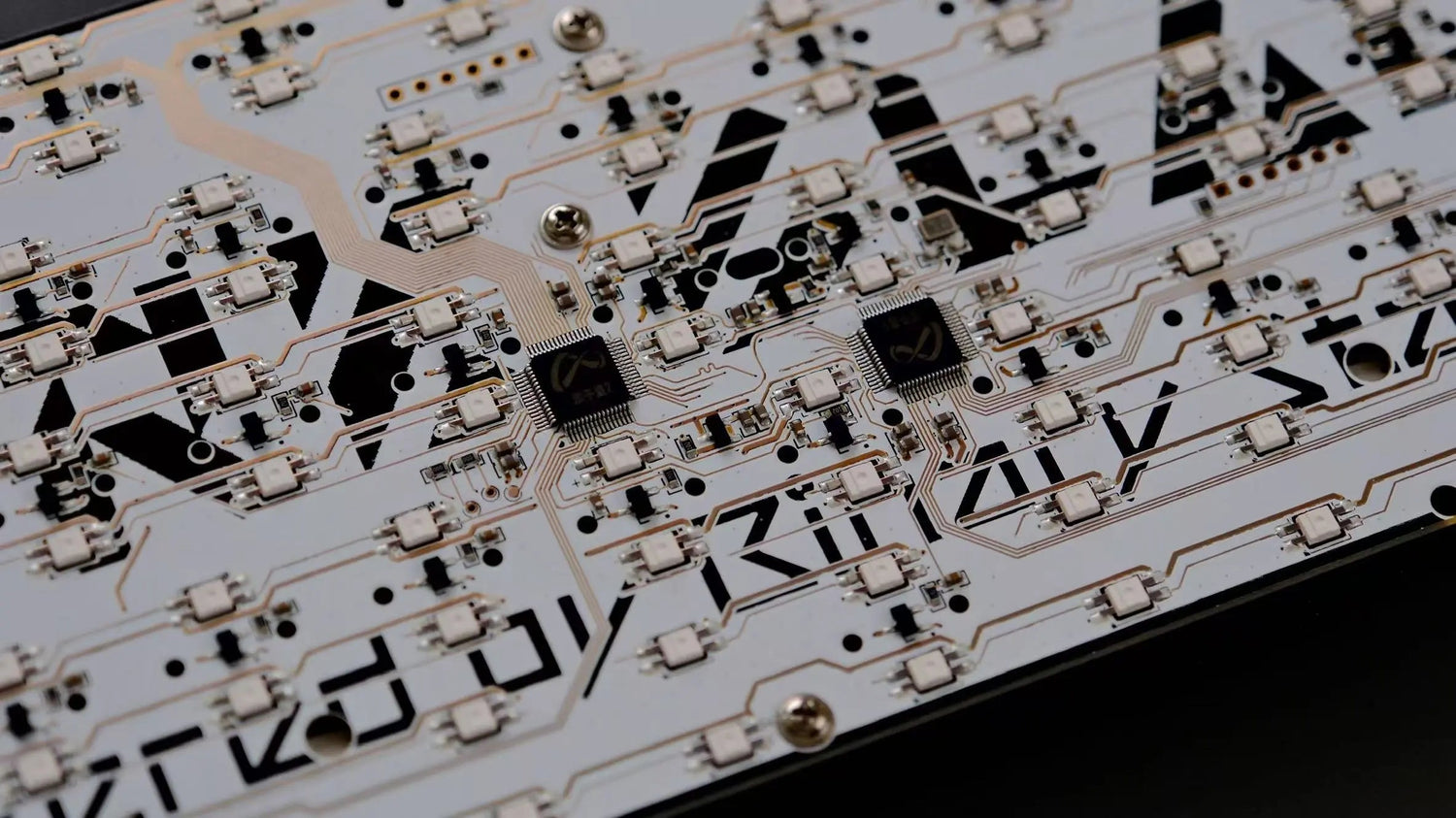

5. The MK60 HE’s dual MCU architecture samples this voltage through its ADC (analog-to-digital converter) thousands of times per second.
6. Firmware converts these samples into:
   • Actuation and deactuation points
   • Rapid Trigger behavior
   • Analog movement values
   • Dynamic Keystroke (multi-stage actions)
   • Custom travel curves and safe zones

Why this matters:

• No physical contact = no debounce delay
• Analog detection = infinitely adjustable actuation positions
• Continuous readings across the full key travel = better control for gaming, analog input, and custom behavior

How to Use It — MK60 HE (Data & Real Specs)

The MK60 HE takes Hall Effect technology and pairs it with a high-performance PCB, dual MCU design, and precision firmware tuning. Below is a technical overview of how that translates into real-world performance.

MK60 HE Hardware Overview

Using MK60 HE in MorkBlade Connect

In the MorkBlade Connect software, you can:

• Set actuation point for each key anywhere along the travel, from ultra-light 0.1mm to a deeper, more controlled feel.
• Enable and tune Rapid Trigger for fast key resets in movement-heavy games.
• Activate Analog Mode for full-range key travel control (for example, walk → jog → run based on how deep you press).
• Adjust curves and thresholds to make each key feel linear, sensitive, or more gradual depending on your playstyle.
• Create per-key profiles and save different presets for FPS, rhythm, racing, and everyday typing.

Example MK60 HE Settings by Game Type

When to Use a Hall Effect Keyboard

Hall Effect keyboards shine in situations where precision and timing are critical. If your gameplay depends on fast strafes, instant resets, or extremely accurate tap timing, the benefits become obvious as soon as you switch.

Ideal scenarios for Hall Effect keyboards:

• Counter-strafing in tactical shooters that require precise movement stops.
• High-speed tapping where debounce on mechanical switches becomes a bottleneck.
• Smooth analog steering and throttle for racing and simulation games.
• Situations where low-latency keystrokes and consistent actuation directly affect your performance.

With MorkBlade Connect, you can back this hardware up with:

• Visual graphs of your key travel and actuation points
• Per-game profiles for FPS, rhythm, racing, and more
• Fine-tuned dead zones, safe zones, and Rapid Trigger windows

Why Use Hall Effect vs Normal Mechanical Keyboards?

Hall Effect keyboards offer a combination of speed, control, and durability that traditional mechanical switches simply can’t match. By replacing physical contacts with magnetic sensing, you remove a major source of wear, inconsistency, and delay.

• No debounce → faster input recognition.
• No leaf contact → longer lifespan and more consistent feel.
• Adjustable actuation → tune each key for your exact playstyle.
• Rapid Trigger → instant resets for higher-level movement and control.
• Analog input → controller-like precision directly on your keyboard.
• Software hysteresis → smooth, predictable key behavior.

Conclusion — Why MK60 HE Defines the Next Generation

Hall Effect keyboards don’t just add another switch option—they transform the keyboard from a binary device into a precision analog controller. With MK60 HE, magnetic sensing is paired with a dual MCU architecture, high scan rate, per-key actuation tuning, Rapid Trigger, and a solid CNC aluminum build.

If you want one of the fastest, smoothest, and most technically advanced 60% gaming keyboards available today, moving to a Hall Effect design isn’t just an upgrade—it’s a different category of performance.
